MPMC HYBRID SB Series

Solar+Battery Hybrid Power Station By optimizing the integration of solar power, wind power, and energy storage systems, MPMC Hybrid Energy Solutions WSB / SB Series has lower costs than conventional solar & batteries storage systems on the market. MPMC wSB / SB Series have the advantages of free installation, inattentive operation & maintenance, and greatly shortening the investment return period.

Product Description

The system ensures power supply at night and in remote areas without main grid, saving at least 3,600 kWh of electricity every year. By expanding the capacity, other than saving on electric bills, excess electricity can also be sold into the grid.
Based on a typical use of household electrical appliances and the shift to more energy - saving appliances, taking account of actual service time of each electrical appliance, the estimated daily household power consumption is9.58kWh and peak power is about 5940W. And system capacity can be expanded according to requirements.

2026-MPMC Hybrid Power Station


MODEL				GB-10	GB-20	GB-30P	GB-30	GB-50	GB-60P	GB-125P	GB-250P
Rated Voltage			50HZ	380~415Vac	380~415Vac	380~415Vac		380~415Vac	380~415Vac	380~480Vac	380~480Vac
Rated Voltage			60HZ	380~415Vac	380~415Vac	380~415Vac		380~415Vac	380~415Vac	380~480Vac	380~480Vac
Max. Output			kVA	10	20	60		100	120	250	500
LFP Battery Energy Storage System@50Hz/60Hz	LFP Battery	Capacity kWh	Min.	20.4	41.0	61.4	112.5	112.5	112.5	215	430.1
	LFP Battery	Capacity kWh	Max.	41.0	41.0	61.4	112.5	112.5	112.5	215	430.1
	Inverters	AC Side	Type	Hybrid Inverter	Hybrid Inverter	PCS	Hybrid Inverter	Hybrid Inverter	PCS	PCS	PCS
			kVA	10	20	30		50	60	135	270
			Phase	3	3	3		3	3	3	3
		MPPT	kWp	13	26	OPTION	60	75	OPTION	OPTION	OPTION
	Cooling System			Fan	Fan	Fan	HVAC	HVAC	HVAC	LCAC	LCAC
	Anti-fire			Aerosol	Aerosol	Aerosol	Aerosol	Aerosol	Aerosol	Aerosol	Aerosol
Generator Set@50Hz/60Hz	Max. Rated Power (Prime@ISO 8528)		kW	16	16	24		40	48	100	200
	Max. Rated Power (Prime@ISO 8528)		kVA	20	20	30		50	60	125	250
	Emission			OPTION	OPTION	OPTION		OPTION	OPTION	OPTION	OPTION
	Fuel Tank		L	100	100	100	350	350	350	500	500
Dimensions	Layout
	Loading		LWH(mm)	297011501633	297011501633	333011501633	398016801660	398016801660	398016801660	480019502000	520022502250
	Loading Qty.		20GP	4	4	2	1	1	1	1	1
	Loading Qty.		40HC	8	8	6	3	3	3	2	2
	Expand		LWH(mm)	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A
	Net.weight (kG)			2100	2300	2500	3700	3750	3800	6500	9500

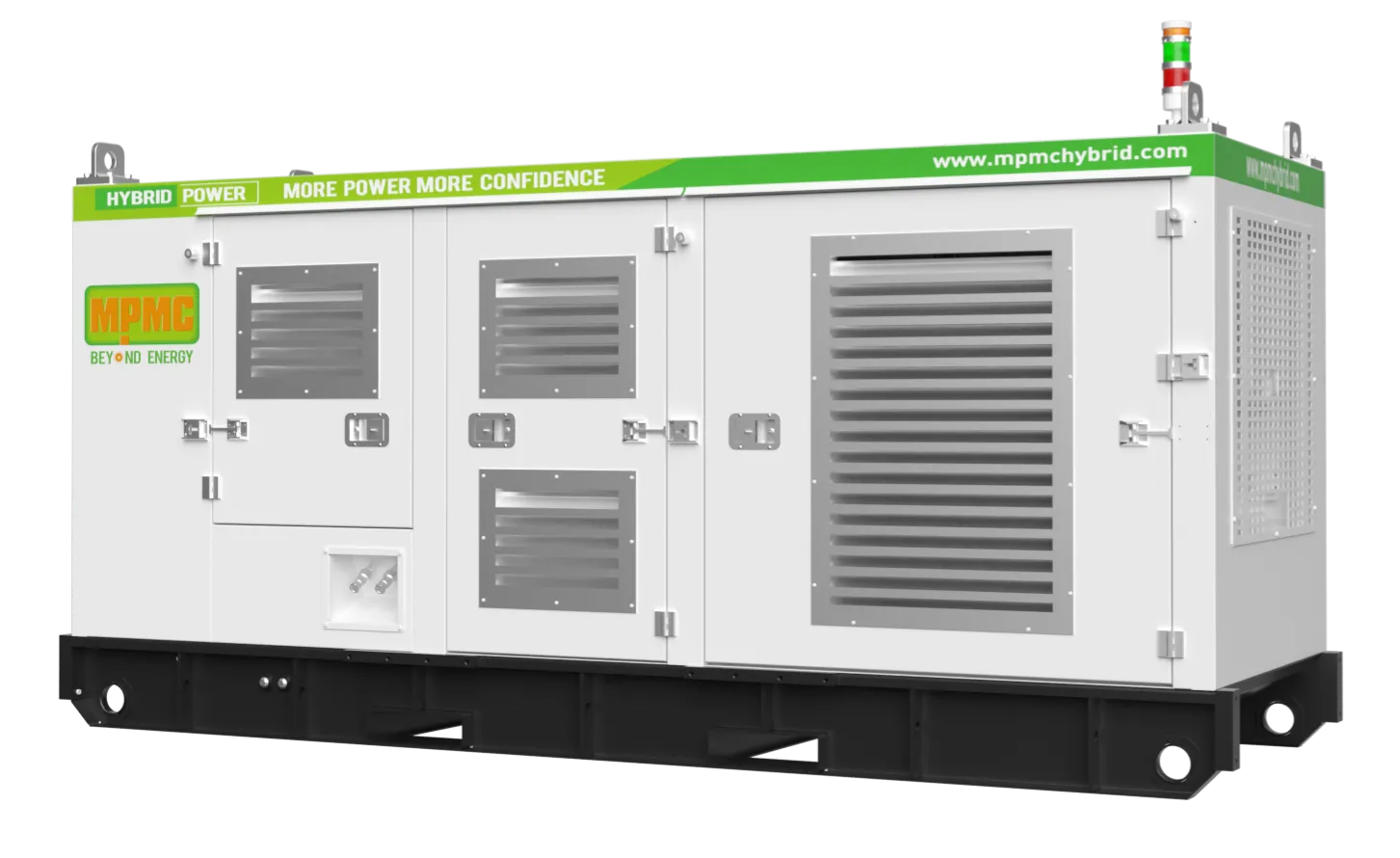

Product Photos
