MPMC HYBRID GB Series
Genset+Battery

GB® is a new range of secure integrated hybrid power station. With diesel generator, Battery storage and Hybrid solar Inverter in one secure unit for option.GB® is mainly developed for lower emission, Reduce the dependence on Main Power and decrease the consumption cost.

All models adaptable to Independent Photovoltaic Array Products (SPK).

Seamless Switching between Diesel Generation and Energy Storage for all models, with Off-Grid and Grid-Connected Operation Functions.

contact us

Benefits

● Integrated installation,convenient storage and transportation;

● High return on investment and quick return;

● Simple operation and easy maintenance;

● Power and Capacity can be expanded,meet different user needs;

● Accept customer customization,suitable for various scenarios;

Scene Diagram

Warranty

● Battery Performance:6000 cycles(80%DOD)or 3 years after manufacture;
●Generator:18 months after manufactureor 1500 hours running time;

Why we need battery storage system that costs much morethan the traditional genset providing the same power?

Reduce Theimpact Of Noise

Save Money

It Is Moresuitable For Rental

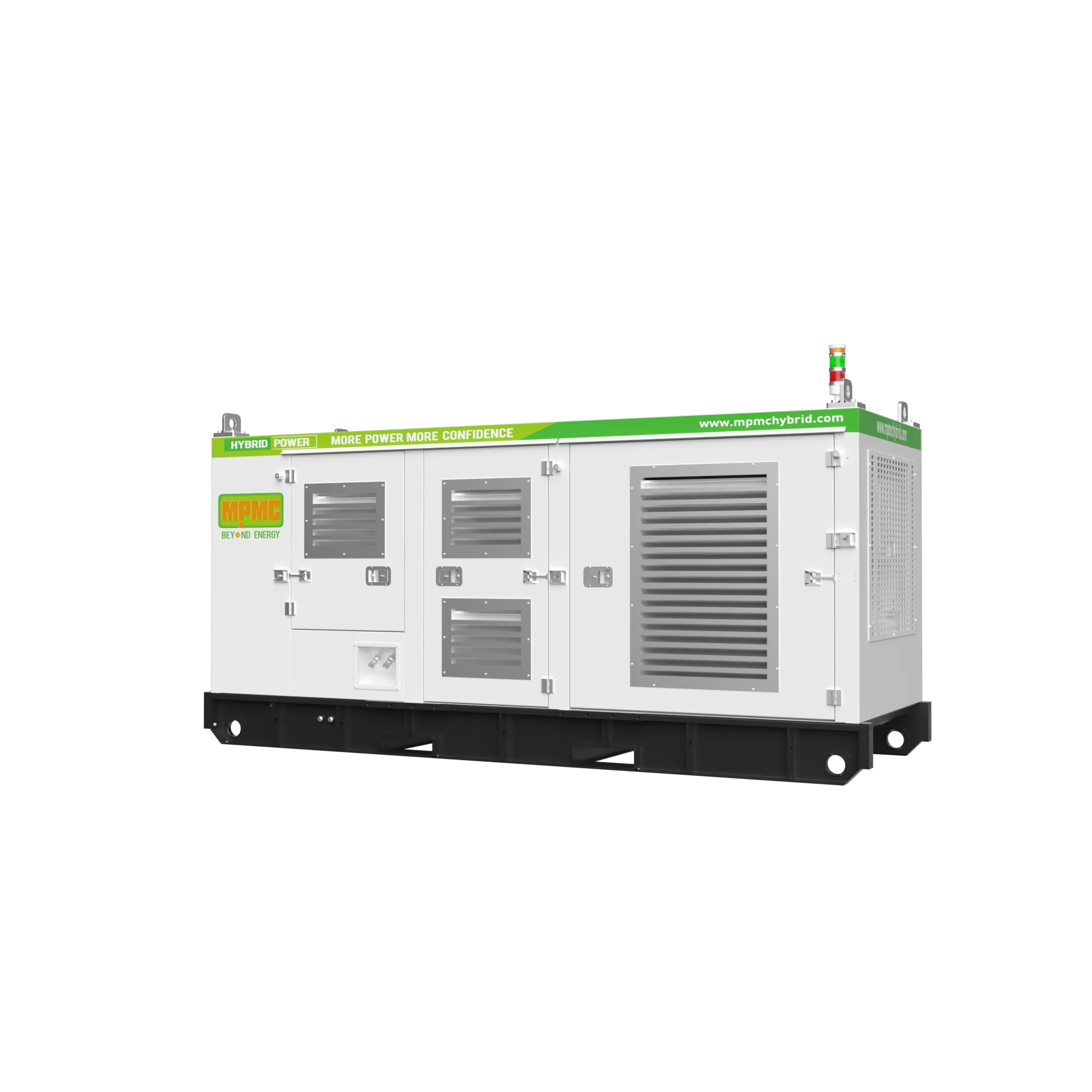

Product Picture

CATEGORY

Specifications

*Customization available

Dec 24, 2020

#INSPIRATION

#CATEGORY

2026-MPMC Hybrid Power Station
MODEL GB-10 GB-20 GB-30P GB-30 GB-50 GB-60P GB-125P
 GB-250P
Rated Voltage 50HZ 380~415Vac 380~415Vac 380~415Vac 380~415Vac 380~415Vac 380~480Vac 380~480Vac
60HZ 380~415Vac 380~415Vac 380~415Vac 380~415Vac 380~415Vac 380~480Vac 380~480Vac
Max.
Output		 kVA 10 20 60 100 120 250 500
LFP Battery Energy Storage System@50Hz/60Hz LFP Battery Capacity kWh Min. 20.4 41.0  61.4  112.5  112.5 112.5 215 430.1
Max. 41.0  41.0  61.4  112.5  112.5 112.5 215 430.1
Inverters AC Side Type Hybrid Inverter Hybrid Inverter PCS Hybrid Inverter Hybrid Inverter PCS PCS PCS
kVA 10 20 30 50 60 135 270
Phase 3 3 3 3 3 3 3
MPPT kWp 13 26 OPTION 60 75 OPTION OPTION OPTION
Cooling System Fan Fan Fan HVAC HVAC HVAC LCAC LCAC
Anti-fire Aerosol Aerosol Aerosol Aerosol Aerosol Aerosol Aerosol Aerosol
Generator Set@50Hz/60Hz Max. Rated Power (Prime@ISO 8528) kW 16 16 24 40 48 100 200
kVA 20 20 30 50 60 125 250
Emission OPTION OPTION OPTION OPTION OPTION OPTION OPTION
Fuel Tank L 100 100 100 350 350 350 500 500
Dimensions Layout
Loading L*W*H(mm) 2970*1150*1633 2970*1150*1633 3330*1150*1633 3980*1680*1660 3980*1680*1660 3980*1680*1660 4800*1950*2000 5200*2250*2250
Loading Qty. 20GP 4 4 2 1 1 1 1 1
40HC 8 8 6 3 3 3 2 2
Expand L*W*H(mm) N/A N/A N/A N/A N/A N/A N/A N/A
Net.weight (kG) 2100 2300 2500 3700 3750 3800 6500 9500



Remarks:
1.The diesel engine is changeable between PERKINS, KUBOTA and YANMAR.SCANIA S5 engine avaliable for 250kVA;
2.The MPPT controller is option for the GB series. On/off-grid function is standard;
3.The SGC 120MKII is standard for GENSET with hybrid inverter.The AGC 150 is standard for GENSET with PCS;
4.STC for solar panel：Light intensity≥1000 W/㎡，Temperature of the PV panel ≤25℃，Atmospheric quality≤1.5；
5.The changeover between the diesel generator and PCS is seamless.



Download

  • GB-10 Hybrid power station CATALOG.pdf
  • GB-20 Hybrid power station CATALOG.pdf
  • GB-30P Hybrid power station CATALOG.pdf

Product Details

1-EMS control system

2.Fast outlet sockets. Up to IP65

3-Battery pack

4-Forklift holes at the bottom for easy trasportation

5-Stainless steel door locks

6-Stainless steel hinges

7-Lifting rings at the top

8-Emergency button
