MPMC HYBRID GSB Series
Genset+Solar+Battery
MPMC Hybrid Power Station GSB® Series is a reliable resilient / prime energy solution mainly developed for independent power.
-
No.2449 Jinhai Rd., Pudong, Shanghai
English
MPMC HYBRID GSB Series
Scene Diagram
MPMC HYBRID GSB Series
Genset+Solar+Battery
Video product introduction
To live green while ensuring stable off-grid power source, GSB® Series integrates diesel generator set (gas generator set foroption), solar power, battery storage and hybrid solar inverter in one secure unit.
Features
Integrated installation, convenient storage and transportation. High return on investment and quick return.
● Simple operation and easy maintenance.
● Power and capacity can be expanded, meet different user needs. Excellent cooling system for heat dissipation.
● Beautiful design, retractable structure, excellentanti-attenuation performance and high efficiency of MPMC Solar Powered System.
● Visualized smart control system to monitor operation status.
● Reliable Lithium Iron Phosphate Battery Storage to ensure compact structure with high power density and long lifespan.
● Accept customer customization, suitable for various scenarios.

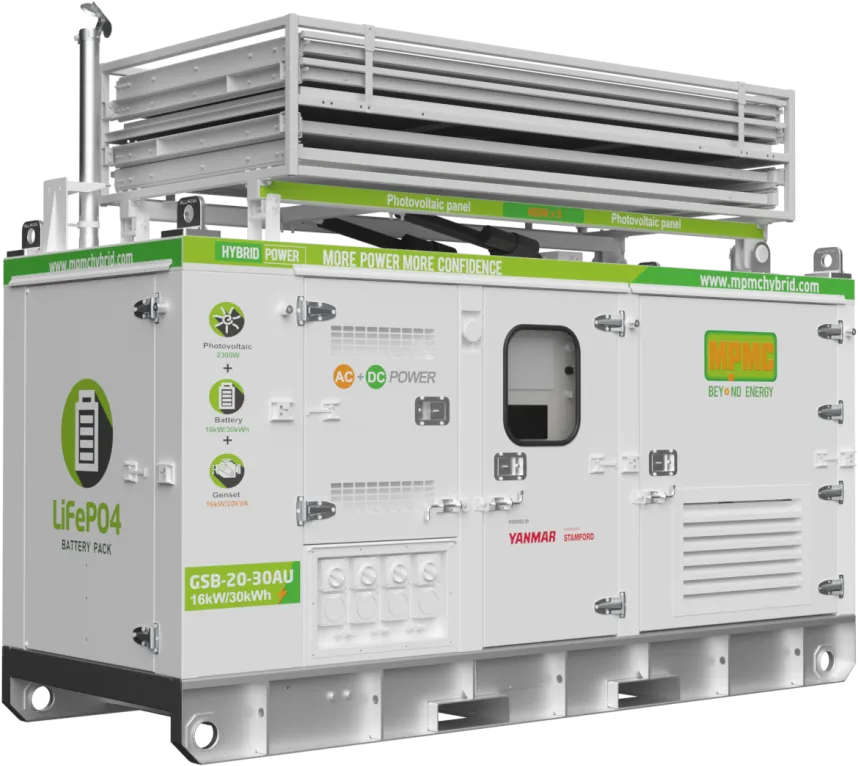

Product Picture
.jpg?x-oss-process=image/resize,w_350/quality,q_100)
| MODEL | GSB-10 | GSB-20 | GSB-30P | GSB-30 | GSB-50 | GSB-60P | |||
| Rated Voltage | 50HZ | 380~415Vac | 380~415Vac | 380~415Vac | 380~415Vac | 380~415Vac | |||
| 60HZ | 380~415Vac | 380~415Vac | 380~415Vac | 380~415Vac | 380~415Vac | ||||
| Max. Output |
kVA | 10 | 20 | 60 | 100 | 120 | |||
| LFP Battery Energy Storage System@50Hz/60Hz | LFP Battery | Capacity kWh | Min. | 20.4 | 41.0 | 61.4 | 80.4 | 112.5 | 112.5 |
| Max. | 41.0 | 41.0 | 61.4 | 112.5 | 112.5 | 112.5 | |||
| Inverters | AC Side | Type | Hybrid Inverter | Hybrid Inverter | PCS+PV Inverter | Hybrid Inverter | Hybrid Inverter | PCS+PV Inverter | |
| kVA | 10 | 20 | 30 | 50 | 60 | ||||
| Phase | 3 | 3 | 3 | 3 | 3 | ||||
| MPPT | kWp | 13 | 26 | 4.5~22.5 | 60 | 75 | 4.5~22.5 | ||
| Cooling System | Fan | Fan | Fan | HVAC | HVAC | HVAC | |||
| Generator Set@50Hz/60Hz | Max. Rated Power (Prime@ISO 8528) | kW | 16 | 16 | 24 | 40 | 48 | ||
| kVA | 20 | 20 | 30 | 50 | 60 | ||||
| Emission | OPTION | OPTION | OPTION | OPTION | OPTION | ||||
| Fuel Tank | L | 100 | 100 | 100 | 350 | 350 | 350 | ||
| Solar Array | Panel Power | W | 460 | 460 | 460 | 460 | 460 | 460 | |
| Total Power | W | 2300 | 2300 | 2300 | 2300 | 2300 | 2300 | ||
| Dimensions | Layout |  |
|||||||
| Loading | L*W*H(mm) | 2950*1150*2250 | 2950*1150*2250 | 3250*1150*2250 | 3950*1650*2250 | 3950*1650*2250 | 3950*1650*2250 | ||
| Loading Qty. | 20GP | 4 | 4 | 2 | 1 | 1 | 1 | ||
| 40HC | 8 | 8 | 6 | 3 | 3 | 3 | |||
| Expand | L*W*H(mm) | 2950*5500*3350 | 2950*5500*3350 | 3650*5500*3350 | 3950*5500*3350 | 3950*5500*3350 | 3950*5500*3350 | ||
| Net.weight (kG) | 3000 | 3100 | 3400 | 3600 | 3950 | 4000 | |||
Remarks:
1.The diesel engine is changeable between PERKINS, KUBOTA and YANMAR;
2.The MPPT controller is option for the GB series. On/off-grid function is standard;
3.The SGC 120MKII is standard for GENSET with hybrid inverter.The AGC 150 is standard for GENSET with PCS;
4.STC for solar panel：Light intensity≥1000 W/㎡，Temperature of the PV panel ≤25℃，Atmospheric quality≤1.5；
5.The changeover between the diesel generator and PCS is seamless.
Download
-
GSB-10 Hybrid power station CATALOG.pdf
-
GSB-20 Hybrid power station CATALOG.pdf
-
GSB-30 Hybrid power station CATALOG.pdf
-
GSB-50 Hybrid power station CATALOG.pdf
Product Details
1-EMS control system
2.Fast outlet sockets. Up to IP65
3-Battery pack
4-Forklift holes at the bottom for easy trasportation
5-Stainless steel door locks
6-Stainless steel hinges
7-Lifting rings at the top
8-Work indicator light
